Resize Images

Download the source code

NOTE: Please reload the page when you jump from one lecture to another so that the code highlighter is loaded! Sorry for the inconvenience.

In this part, you'll learn how to resize images using OpenCV's built-in function cv2.resize() function. You'll also learn how to resize an image by preserving the aspect ratio so that the resized image doesn't appear distorted.

The following image will be used as an example throughout this tutorial:

Sample image

The image has a shape of (400, 600, 3)

The cv2.resize(src, dsize[, dst[, fx[, fy[, interpolation]]]]) takes 2 required arguments and 4 optional arguments:

  • src: (required) This is the input image.
  • dsize: (required) The size for the output image.
  • dst: (optional) The output image with size dsize.
  • fx: (optional) The scale factor along the horizontal axis.
  • fy: (optional) The scale factor along the vertical axis.
  • interpolation: (optional) The algorithm used to reconstruct the new pixels. See InterpolationFlags for the list of options available.

Resizing with a Specific Width and Height (Don't Preserve Aspect Ratio)

We can downscale or upscale an image when resizing it. Let's downscale the original image to 300x300 pixels:

import cv2

# read the image
image = cv2.imread("image.jpg")
print("Original shape: ", image.shape)

height = 300
width = 300
dimensions = (width, height)
new_image = cv2.resize(image, dimensions, interpolation=cv2.INTER_LINEAR)

print("New shape:      ", new_image.shape)

# display the images
cv2.imshow("Original image", image)
cv2.imshow("Resized image", new_image)
cv2.waitKey(0)
cv2.destroyAllWindows()

output:

Original shape:  (400, 600, 3)
New shape:       (300, 300, 3)

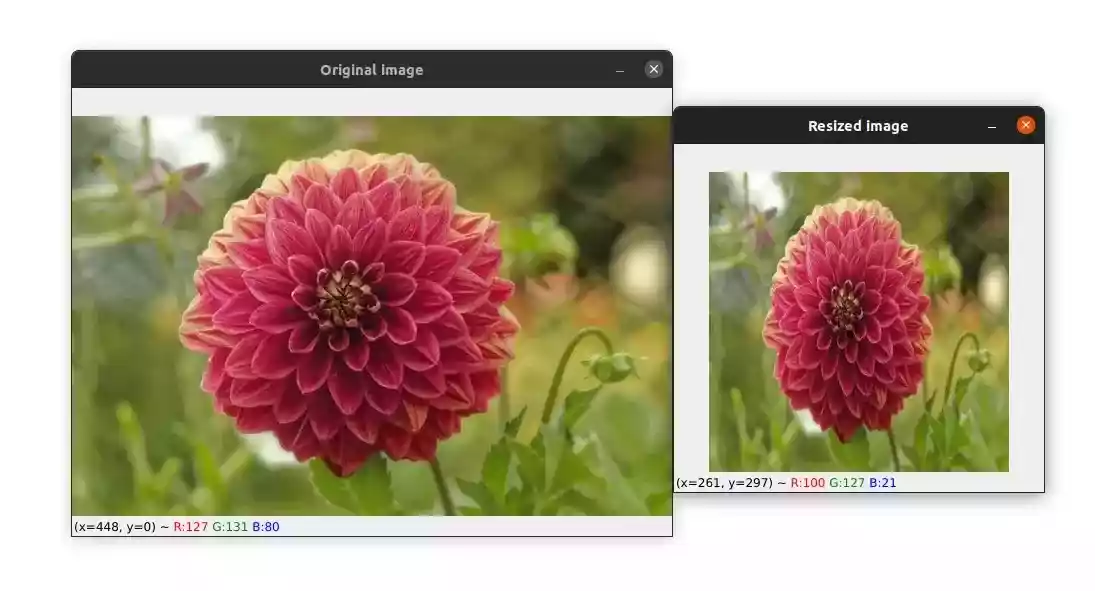

Resize with specific width and height

As you can see, the new image is a bit distorted because we didn't take into account the aspect ratio.

Resizing with a Scaling Factor (Preserve Aspect Ratio)

We can resize an image by using a scaling factor. Basically, a scaling factor is a number by which you multiply the dimension of the image. For example, if you want your new image to be half of the original image, then the scaling factor should be 0.5.

This way, you are sure that the aspect ratio of the original image will be the same as that of the new image.

import cv2

# read the image
image = cv2.imread("image.jpg")
print("Original shape: ", image.shape)

height = image.shape[0]
width = image.shape[1]

# We want the new image to be 60% of the original image
scale_factor = 0.6
new_height = int(height * scale_factor)
new_width = int(width * scale_factor)
dimensions = (new_width, new_height)
new_image = cv2.resize(image, dimensions, interpolation=cv2.INTER_LINEAR)

print("New shape:      ", new_image.shape)

cv2.imshow("Original image", image)
cv2.imshow("Resized image", new_image)
cv2.waitKey(0)
cv2.destroyAllWindows()
Original shape:  (400, 600, 3)
New shape:       (240, 360, 3)

Here, we wanted our new image to be 60% of the original one, so we multiplied the previous width and height by 0.6.

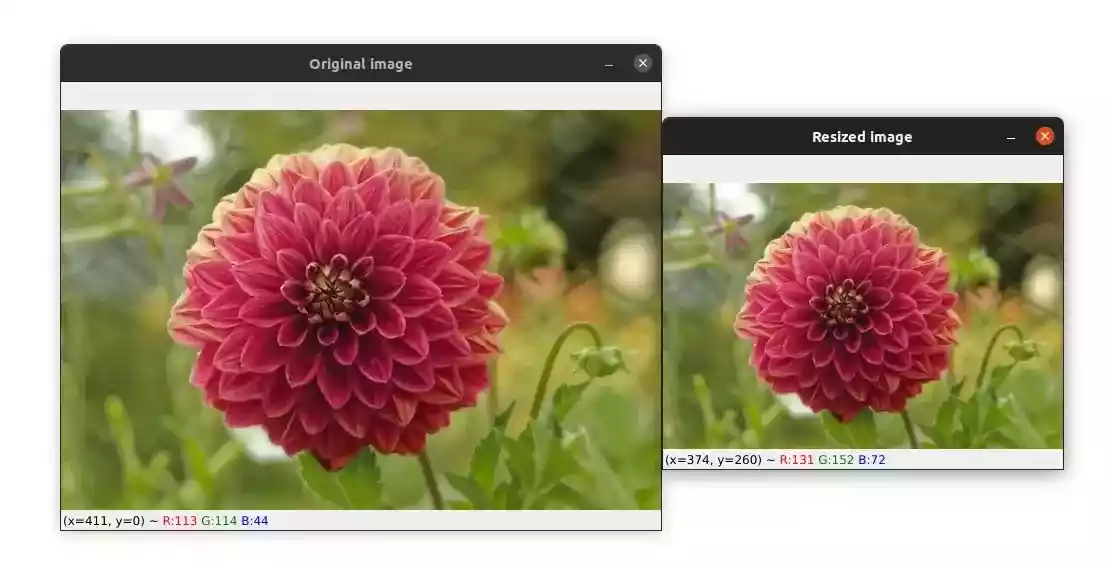

Resize with scale factor

Resizing with a Specific Width or Height (Preserve Aspect Ratio)

Usually, you don't want to set a scale factor, instead, you want to resize the image to a specific width or height, and you want the aspect ratio to be automatically maintained.

So in order to do that, we need to calculate the aspect ratio of the original image and use it to resize the image.

Here is how to do it:

import cv2

# read the image
image = cv2.imread("image.jpg")
print("Original shape: ", image.shape)

height = image.shape[0]
width = image.shape[1]

# let's say we want the new width to be 400px
# and compute the new height based on the aspect ratio
new_width = 400
ratio = new_width / width # (or new_height / height)
new_height = int(height * ratio)

dimensions = (new_width, new_height)
new_image = cv2.resize(image, dimensions, interpolation=cv2.INTER_LINEAR)

print("New shape:      ", new_image.shape)

cv2.imshow("Original image", image)
cv2.imshow("Resized image", new_image)
cv2.waitKey(0)
cv2.destroyAllWindows()
Original shape:  (400, 600, 3)
New shape:       (266, 400, 3)

Let's say we want our new image to have a width of 400px. We use this new width to calculate the ratio and we calculate the new height by multiplying the original height by the ratio.

The ratio is equal to: ration = new_width/width = new_height/height. If we want to resize using a new width, we calculate the ratio using new_width/width and if we want to resize using a new height, we calculate the ratio using new_height/height.

The new image will not appear distorted. Here is the result:

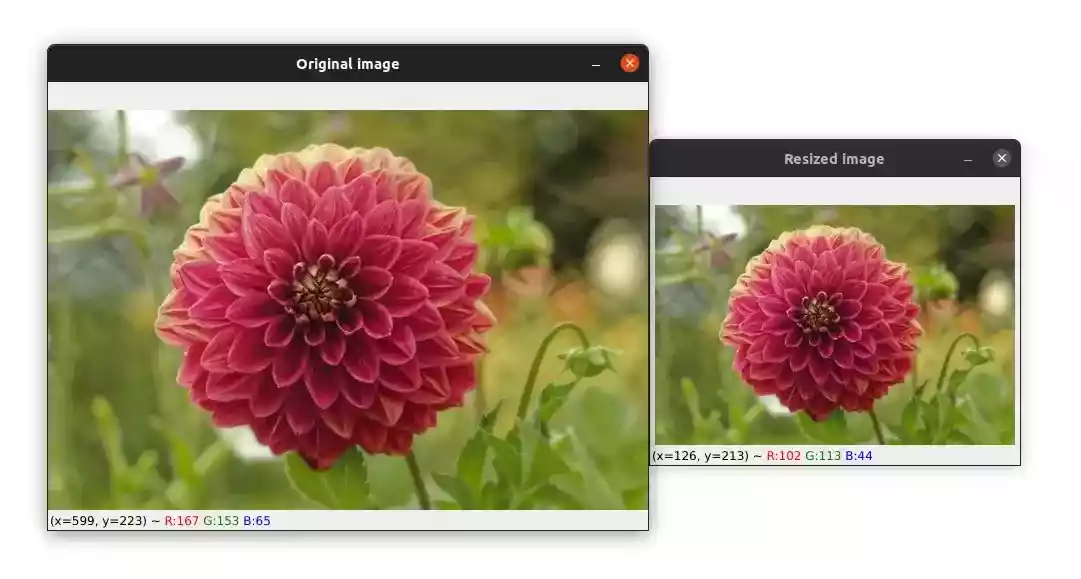

Resize with specific width or height

Summary

In this part, you learned how to resize an image using a custom width and height but the resulting image looked distorted. You also learned how to use a scaling factor to preserve the aspect ratio while resizing; the resulting image will not look distorted.

Finally, I showed you how to resize an image by preserving the aspect ratio without using a scaling factor. This is useful when you want to resize your image by providing a specific width or height.
